Adjustable Post Holder M20 for 10 x 10 to 12 x 12 cm Posts - Per Piece

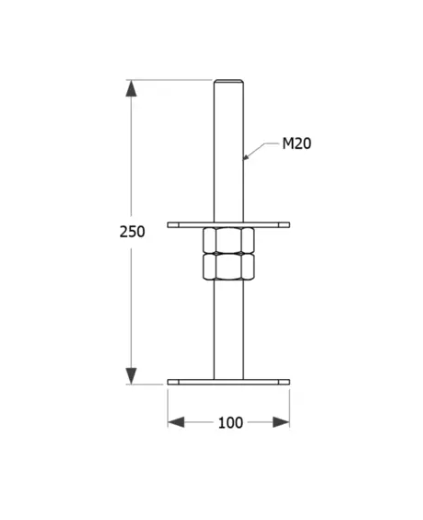

If you are looking for an adjustable post holder, our Adjustable Post Holder M20 10 x 10 cm may be just what you need. With an overall length of 250 mm and a width of 100 mm, this adjustable elevated post bases is suitable for posts with sizes ranging from 10 x 10 to 12 x 12 cm. This post holder is Adjustable this thanks to the different parts it consists of.

This adjustable post holder consists of:

• Two steel plates of 100 x 100 mm
.
• M20 Screw threads (250 mm long)
• Two M20 bolts

Installing post holder M20 Galvanised

When installing the Adjustable post holder, it is important to follow certain steps for a solid and safe installation:

Preparation

Make sure you have all the supplies you need, including tools, M10 coach screws, 7 mm hardwood drill bits, nylon plugs and washers if needed for extra strength.

Pre-drilling

Before starting to install a wood post, it is recommended to pre-drill with a 7 mm hardwood drill bit first.

Fixing in Concrete

If you plan to secure the post holder in Concrete, we recommend combining our coach screws M10 with our nylon plugs for a solid anchoring. Drill holes in the Concrete at the desired locations. Fill the drilled holes with the nylon plugs. Screw the coach screws firmly into the nylon plugs.For a higher clamping range and better protection of the post holder, we recommend using washers M10 when securing. With this careful approach, you can be sure that the Adjustable Pole Holder will be securely and safely installed.

Order adjustable elevated post bases 10 x 10 M20?

Order your adjustable elevated post bases 10 x 10 from Wovar at the Lowest price! Companies in the construction and garden industry benefit from extra advantages such as a fixed business discount.

But just not quite what you are looking for? View our full range of post bases or post bases flat.
