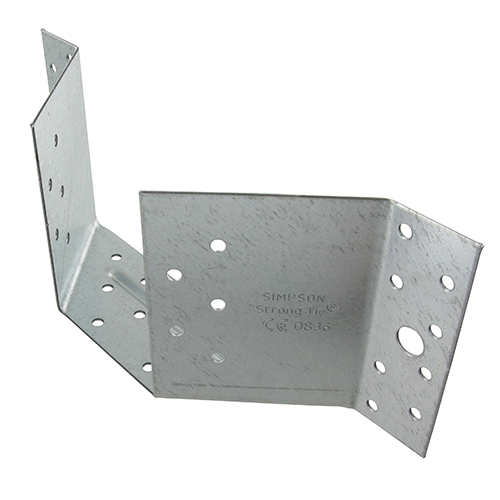

Beam Bracket 45° Angle Left and Right 76 x 97 mm - Per piece

This galvanised beam bracket is perfect for connecting a beam to a wooden or concrete surface at a 45-degree angle.

Mounting the bracket

Mounting this bracket is fairly simple when you know which fasteners to use. We made a list with all the required fasteners for this bracket.

• Mounting holes with 5 mm diameter: galvanised chipboard screws 4 x 35 mm Torx
• Mounting holes with 11 mm diameter, connection with wood: coach screws M10
• Mounting holes with 11 mm diameter, connection with concrete: hammer fixings 10 mm

The total number of 5 mm mounting holes is 32. There are two 11 mm mounting holes.

Ordering beam brackets 45° angle

Order these beam brackets 45° angle today for a competitive price. When you order several brackets, you profit from our volume discount. Wovar's business clients receive extra benefits with a business account. Sign up for free to get access to, among others, a business discount and a detailed order history.

Are these brackets not exactly what you are looking for? Check out our other beam brackets, or browse our entire range of metal brackets, including joist hangers, corner brackets, and fence panel brackets.
