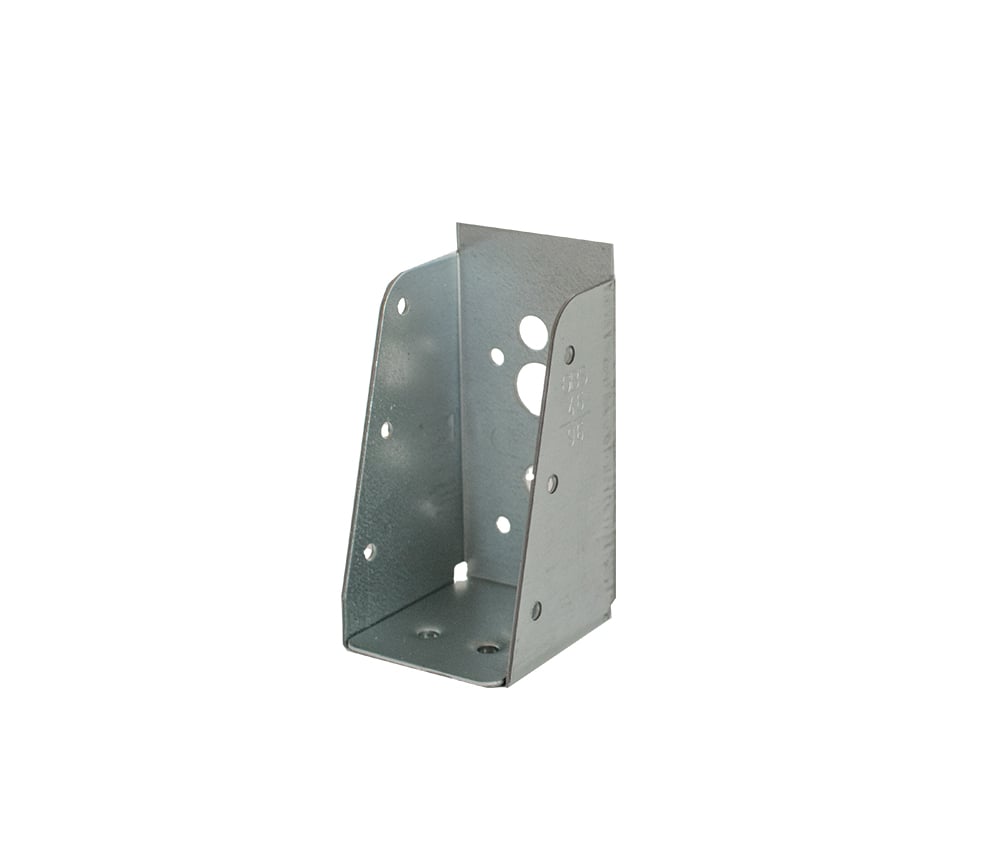

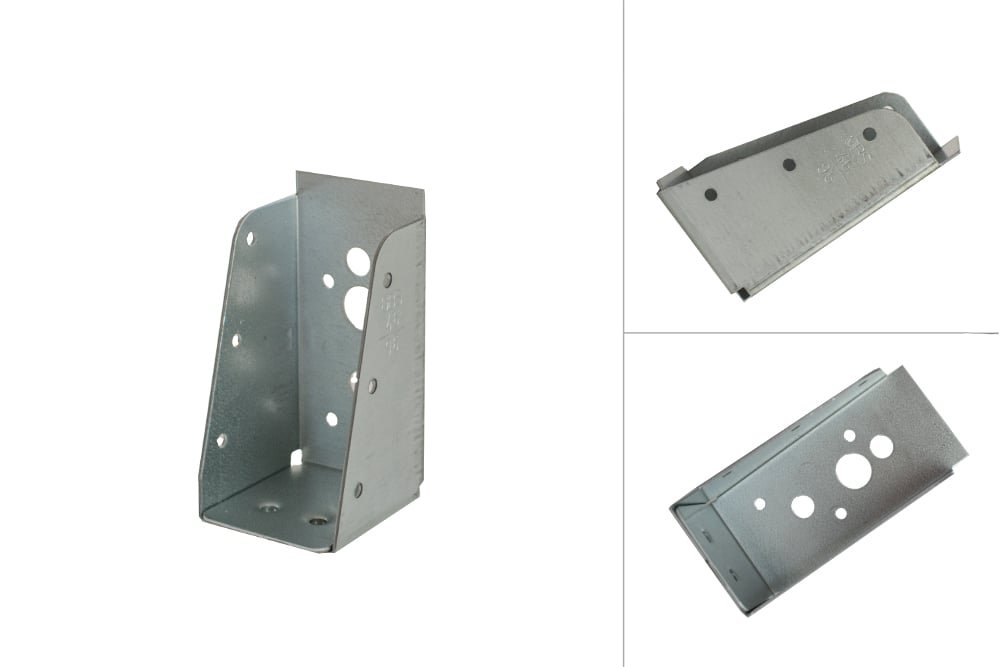

Beam Support without flange Galvanised for 4.5 x 9 cm Beams - Per Piece

This beam carrier 4.5 x 9 cm without flange from Wovar made of galvanised steel is very strong. Beam carriers are also called beam supports. The 12 mounting holes make it possible to screw the beam supports firmly. Use these beam supports when mounting 4.5 x 9 cm beams.

Fixing the beam carrier

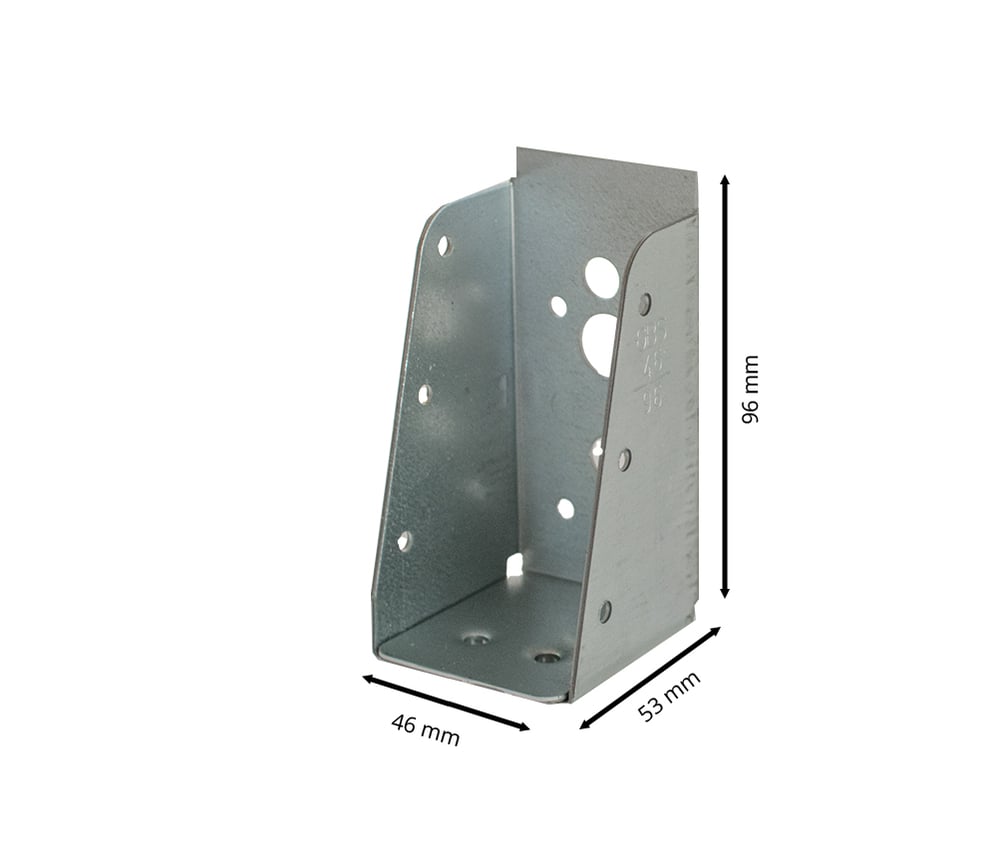

The beam carrier has a total of 12 mounting holes. 9 mounting holes have a diameter of 4 mm. 2 mounting holes have a diameter of 9 mm and 1 mounting hole is 14 mm wide. The beam support is 1.5 mm thick. For the mounting holes with a diameter of 4 mm, we recommend our chipboard screws with a thickness of 3.5 or 4 mm. You can fix the larger ones with our galvanised lag screws. Use an M8 zinc plated lag screw for the 9mm holes and an M12 lag screw for the largest 14mm hole.

CE mark

Wovar's steel beam supports have not been tested for load-bearing capacity and do not have a CE mark. If you want to install beam holders that have been tested or provided with a CE mark, we recommend choosing our beam supports.

Order beam support without flange 46 x 96 mm

Order the beam carrier without flange for 45 x 90 mm beams from wovar. All orders within Europe are delivered in 2-5 business days. Green and construction companies, such as DIY companies, construction companies and gardeners, receive extra benefits at Wovar, such as discounts with a business account.

Is this beam support not quite what you are looking for? View our entire range of beam supports or joist hangers here.
