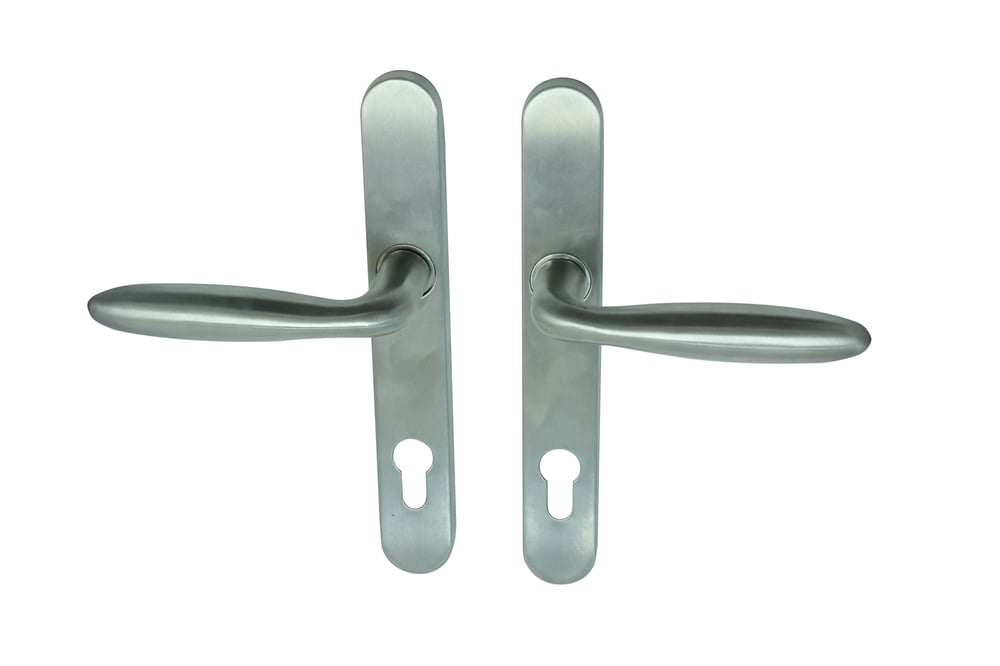

Door handle on backplate stainless steel PC85 - Oval model

Looking for door handle on shield Stainless steel with PC85? This oval Door handle backplate including door handle is made of high-quality Stainless steel, but has a backplate made of Galvanised Steel. The Stainless steel front plate gives this door hardware a luxurious look to your interior. Because the handle is already attached to the handle backplate, the set is very sturdy and easy to Securing. The handle backplate has an oval shape whereby the handle is automatically sprung so that it always returns to position.

By snapping on the Stainless steel front plate, the bolts are invisibly concealed which ensures an even finish. Because the door handle backplate has a cylinder hole, it is possible to easily install your cylinder locks, for matching cylinder locks also see the corresponding articles. This makes the door handle on shield Stainless steel interior doors that can be locked. Looking for another type of door handle on shield? Then see our full range door hinges on shields or choose door hardware on rosettes.

Door handle on shield Stainless steel

The Door handle backplate is 22.5 cm long, 3.3 cm wide and has a thickness of 1 cm. The already attached door handle is 12.9 cm long, has a diameter of 2.3 cm and is 4.5 cm away from the door backplate. The included door handle pin, which you use to connect the door handles from both sides, is 12 cm long. This makes the door handle on shield suitable for doors with a thickness of minimum 3.5 cm and maximum 4.5 cm.

The centre-to-centre distance between the handle hole and the keyhole, also known as PZ size, is 85 mm. Are you ordering a separate mortise lock with it? Then keep in mind that it has the same PZ-size of 85 mm.

Complete set of door hardware PC85

The set consists of two times the Door handle backplate including keyhole, this means that you will have a Door handle backplate and door handle for both sides of the door. These come with 2 matching patent bolts of which the patent bolt is 4.6 x 0.4 cm and the patent sleeve is 2.2 x 0.5 cm. To do this, use a screwdriver with Flat head. You will also find two fixing balls in the set. These allow the door handles to be fixed to the door handle pin, which is also supplied. You will also find a allen key 3 mm for tightening the fixing balls.

Mounting door hardware

Fixing the door handle on shield is easy. You will probably have already installed the mortise lock in the door first. If not, install it first. Please note: It must have the same PZ size as the shield, in this case 85 mm. After fitting the mortise lock, the locations for the door handle pin and keyhole are determined.

Before you start, remove the Stainless steel frontplate from the backplate. Hold the Door handle backplate in place and mark the 2 bolt holes of the shield on the door. Do this on both sides. Pre-drill the holes with a 2 mm hardwood drill bits. Then place the Door handle backplate on the door and secure it with the patent bolts provided. Next tighten the fixing balls in the door handle with the allen keys, so that they are firmly attached to the door handle pin. Finally, press the Stainless steel front plate onto the backplate for a beautiful finish.

Explanation door handle on shield Stainless steel PC85

Ordering Stainless steel door handle on shield
