Rising butt hinge Black SKG*** 89 x 89 mm Right - Per Piece

This Black Rising butt hinge with SKG 3 stars CE Certificate from Wovar has been named the most innovative 'Police Quality Mark Safe Living' product of 2018. And that's even though this hinge has no thief's claw! This is because the top and bottom of the pin are completely sealed. As a result, the hinge is SKG approved and also has a sleek design.

Black Rising butt hinge SKG*** 89 x 89 mm

This ball stud hinge with ball bearings and CE Certificate has a length and width of 89 mm and is 3 mm thick. In addition, it has Rounded corners and is finished with a Black epoxy coating. This coating gives the hinge extra protection. Finally, the load-bearing capacity of this SKG Rising butt hinge is as much as 120 kg per 4 pieces!

.

Please note: A Rising butt hinge cannot be turned over. So make sure you choose the right turning direction. so make sure you choose the right turning direction. This Black hinge is right-handed. This means it is suitable for doors that turn right inside (rotation direction 4 on the last picture) and left outside (rotation direction 1 on the last picture).

.

Black Rising butt hinge with SKG*** CE Certificate Securing

This hinge has eight countersunk mounting holes with a diameter of 4.5 mm. For a tight installation, we therefore recommend using our black 410 stainless steel screws 4 x 50 mm.

.

In addition, for the Hinge to work properly, you will need to make a recess. You do this by drawing an outline of the Hinge at the place where you will install it. Then use a hammer and chisel to make a 3 mm deep recess for the Hinge to sink into. Need another hammer or chisel? You can find these in the hand tools category under woodworking.

Tip:To make a cutout use our router jigs for Hinges for the quickest and best results.

These can be found in our router jigs category.

.

Are you installing the hinges on Hardwood? Then pre-drill the holes lightly. This prevents possible splitting of the wood and ensures that the screws rotate easily. Use a hardwood drill bit 2.5 mm and do not drill the holes deeper than 20 mm.

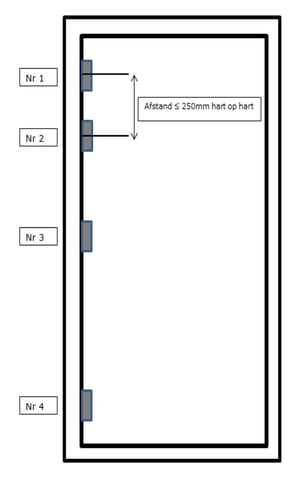

To meet the requirements of the SKG*** classification, you must use four of these hinges. Take a look at the diagram below to see where to place the hinges.

The door in the example in the third image is a standard door measuring 2325 x 930 mm.

Rising butt hinge with SKG CE Certificate order

.

Order this Black Rising butt hinge with SKG*** CE Certificate today at a competitive price from Wovar.

Do you have a construction or handyman's business or are you a landscaper? Then sign up for a business account.

When you become a business customer you enjoy extra benefits, such as a fixed discount!

Is this Black Rising butt hinge not quite what you are looking for? Then take a look at our full range paumelle hinges. In addition to Rising butt hinges, we also supply standard hinges, ball bearing hinges, bomb hinges, security hinges, louvered door hinges, flap hinges, piano hinges and black hinges.

In addition to ball bearing hinges, we also supply double action spring hinges, backflap hinges and black hinges.
